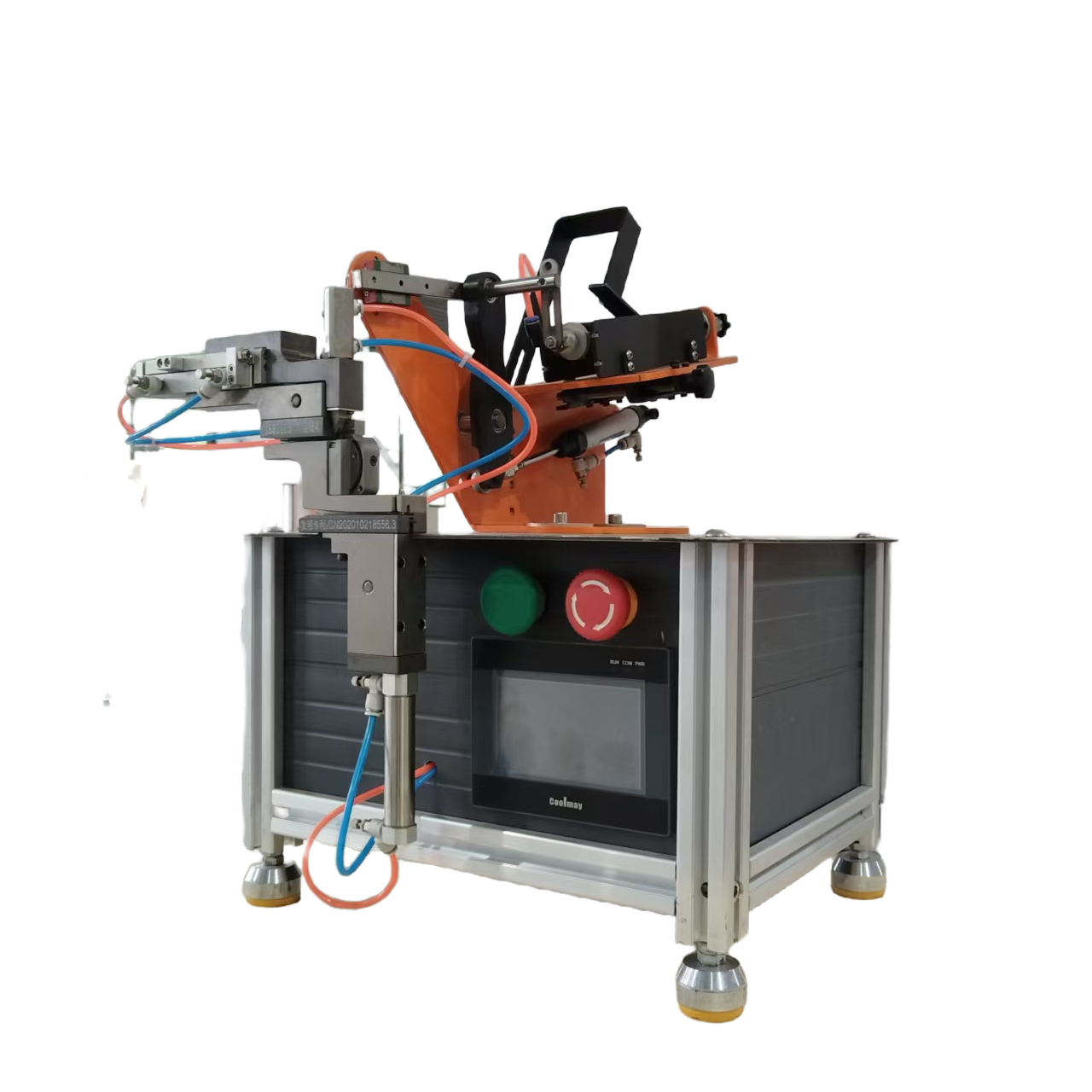

BOS-168 Automated Price Label Feeder

The BOS-168 is a globally innovative automated hang tag and price label feeding machine (Patent No.: CN202010218556.3). Designed for high-efficiency production environments, this machine replaces manual tag attaching and significantly improves productivity while reducing labor costs.

Technical Specifications

• Model: BOS-168

• Brand: BOOSTER

• Supplier: Booster

• Voltage: 220V / 50Hz

• Working Air Pressure: 0.5 MPa

• Tag Width Range: 15–65 mm

• Maximum Tag Height: 130 mm

• Adjustable Card Width: 15–50 mm

• Compatible Loop Sizes: 3", 4", 5", 7" machine loops

• Needle Inner Diameter: 2.5 mm

• Needle Length Range: 46–60 mm

• Tagging Speed: 0.6 seconds per cycle

• Maximum Stapling Thickness: 35 mm

• Main Unit Weight: 2 kg

• Total Machine Weight (including host): 8 kg

• Emergency Stop Mode: Push-button emergency stop

• Operation Modes: Manual / Foot Pedal / Sensor

• Drive Type: Electro-pneumatic hybrid system

• Application Type: Hang tag fastening

• Installation Type: Table-mounted system

• Frame Material: Industrial-grade metal structure

• Control Type: Button control panel

• Production Efficiency: High-speed automated feeding

• Labor Saving: Replaces 2–3 workers

• Durability: Heavy-duty industrial design

• Warranty: 1–3 years optional extension

• Patent: CN202010218556.3

• Suitable Industries: Retail, Garment, Hardware, Kitchenware, Tableware

• Applicable Products: Tools, Utensils, Clothing, Accessories

• Automation Level: Semi-automatic

• Feeding Mechanism: Automatic card feeding

• Tag Attachment Method: Loop fastening

• Max Product Diameter: Up to 35 mm

• Noise Level: Low industrial noise

• Maintenance Type: Easy access maintenance design

• Energy Saving: Optimized power consumption

• Production Optimization: Reduces loop replacement frequency

• Batch Compatibility: Supports 100-loop sets

• Safety Protection: Emergency stop system

• Operating Environment: Factory production line

• Machine Stability: High structural stability

• Cost Efficiency: Lower total equipment investment

Main Advantages

• One machine saves 2–3 workers.

• Significantly improves production efficiency.

• Reduces long-term labor and operational costs.

• Flexible and easy operation.

• Durable and more reliable than traditional tag guns.

The BOS-168 Automated Price Label Feeder is engineered for reliability, durability, and industrial performance. It is the ideal solution for manufacturers and retailers seeking automated hang tag and price label attachment with improved efficiency and reduced cost.
